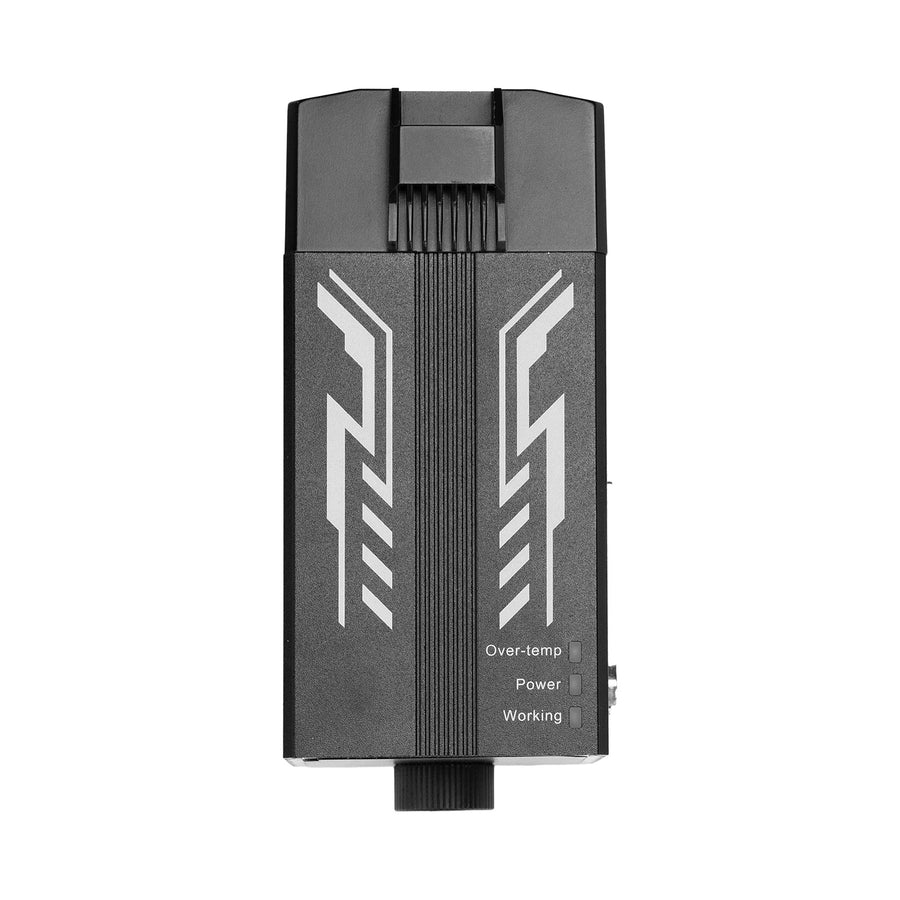

More from AtomStack →Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro V2）
$269–$340.86
In stock at atomstack.com
Compatible only with A20 Pro V2 and Swift 7W/12W. Laser Parameter: Model R20-A Wavelength 1064±1nm Power ≥1.8W Power Stability (25°C) ±5% Effective Focal Position (Tested on Brass) ±0.75mm Pulse Width ≈5ns Frequency 22±3KHz Red Aiming Beam 650±20 nm (coaxial output) Peak Power ≈16KW Power Supply DC24V(3A/72W) Beam…
Shop now at AtomStack →Code
welcomeSee all 196 AtomStack products·Visit atomstack.com
Price and stock from atomstack.com, refreshed daily. We may earn a commission if you buy.
Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro… at a glance
| Brand | AtomStack |
|---|---|
| Price | $269–$340.86 |
| Type | Accessories |
| Options | 2 plugs |
| Availability | In stock at atomstack.com |
| Coupon | welcome |
| Returns | Exchanges must be requested within 30 calendar days of delivery with an RMA form from… |
Price check
At $269, the Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro… is toward the top of AtomStack's price range, whose 188 listed products run $0.98 to $4,449.
About this product
From AtomStack's product listing:
Compatible only with A20 Pro V2 and Swift 7W/12W. Laser Parameter: Model R20-A Wavelength 1064±1nm Power ≥1.8W Power Stability (25°C) ±5% Effective Focal Position (Tested on Brass) ±0.75mm Pulse Width ≈5ns Frequency 22±3KHz Red Aiming Beam 650±20 nm (coaxial output) Peak Power ≈16KW Power Supply DC24V(3A/72W) Beam Control PWM laser emission signal input pin; operates at 3–5V logic levels. A high level triggers laser emission, while a low level turns the laser off (the indicator light operates in inverted logic). High/Low-Temperature Cycling (Power Stability) High/Low-Temperature Cycling (Power stability ±5%; Low temp: -20°C/30 min, High temp: 85°C/30 min; 20 cycles; 1 pc/batch) Standard Burn-in (48h) Power degradation <15% (after 48 hours of aging at an ambient temperature of 32°C; post-aging power >1.8W; excluding measurement errors
Frequently asked questions
How much is the Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro…?
AtomStack lists it at $269–$340.86 on atomstack.com. We refresh prices throughout the day, but always confirm the final price at checkout.
Is there a coupon code for the Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro…?
AtomStack's store-wide code welcome can be entered at checkout on atomstack.com. AtomStack sets the discount, and some items or sale prices may be excluded.
What is AtomStack's return policy?
Exchanges must be requested within 30 calendar days of delivery with an RMA form from official@atomstack.com. Unopened machines can be returned within 15 calendar days, with the customer paying return shipping and a 10% service charge unless the item was wrong or defective.
How long does AtomStack take to ship?
Orders process in 24 to 48 hours, and most US and EU deliveries take 3 to 7 business days from local warehouses. Pre-orders take 30 to 90 days, refurbished machines 3 to 20 days, and US standard shipping is $9.90 on orders under $50.
Does the Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro… come with a warranty?
AtomStack's published warranty terms: New laser machines and accessories carry a one-year warranty from the invoice date. Refurbished products get three months, open-box items get six months, and the warranty is non-transferable.
What options does the Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro… come in?
Plug: US Plug, EU Plug.
Where can I buy the Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro…?
The Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro… is sold directly by AtomStack on atomstack.com. The Shop now button on this page goes straight to the product there, and code welcome can be applied at checkout.
Is the Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro… in stock?
Yes. AtomStack lists it as in stock on atomstack.com as of our latest check. Stock and prices refresh throughout the day.
Is AtomStack a legit store?
AtomStack makes sense for hobbyists and small craft businesses who want an affordable laser engraver and value a store that sells nearly every replacement part separately. Skip it if you want easy, free returns: unopened machine returns carry a 10% service charge plus return shipping, and the window for those is 15 days. Read the return fee table before you buy a machine. Our full AtomStack review covers shipping, returns and what to check before ordering.
Is the Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro… expensive?
At $269 it is toward the top of AtomStack's range ($0.98 to $4,449 across 188 products).
