More from Buddy RC →Hitec D625MW 32-Bit, High Speed, Metal Gear Servo
$49.99
In stock at buddyrc.com

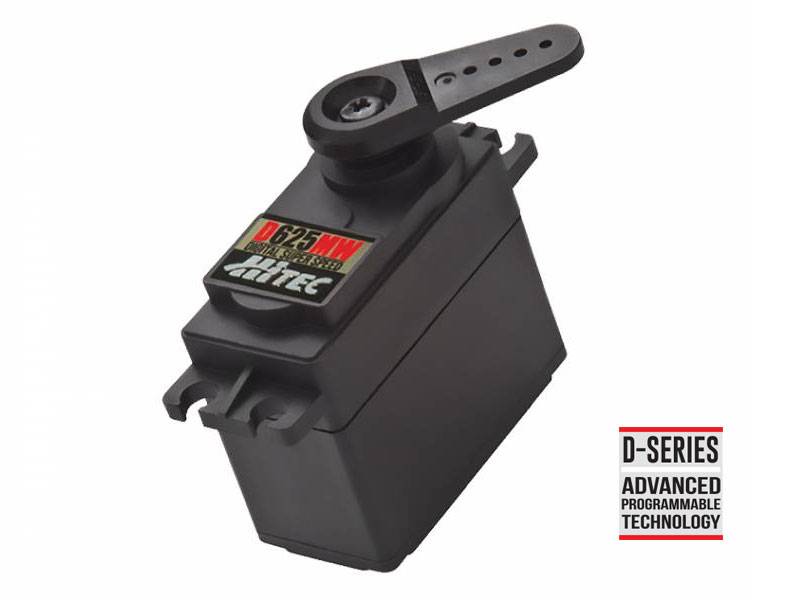

The Hitec D625MW is a high-speed metal gear servo from Hitec's D-Series, with a 32-bit MCU, 12-bit ADC and 4096 resolution for fine control. It runs on 4.8 to 7.4V without regulators and replaces the HS-5665MH. It suits sport planes, 600mm electric helis and 1/10 scale vehicles.
See all 4,621 Buddy RC products·Visit buddyrc.com
Price and stock from buddyrc.com, refreshed daily. We may earn a commission if you buy.
Highlights
- 32-bit MCU with 12-bit ADC, 4096 resolution
- Metal gears and dual ball bearing output shaft
- 25-tooth output spline with 3mm hex screw
- Programmable end points, fail safe, soft start and overload protection
- Universal connector for name-brand radios
Best for
Modelers who value speed over maximum torque.
Things to consider
- Programming requires a Hitec programmer, which isn't listed as included
- Uses a brushed ferrite motor, not coreless or brushless
- No dust or water resistance listed
Key specs
| Price | $49.99 |
|---|---|
| Voltage | 4.8V to 7.4V |
| Speed | 0.20 / 0.15 / 0.13 sec/60 at 4.8 / 6.0 / 7.4V |
| Torque | 87 / 122 / 139 oz-in (6.3 / 8.8 / 10.0 kg-cm) |
| Dimensions | 40.6 x 19.8 x 37.8 mm |
| Weight | 57 g |
| Spline | 25-tooth (H25T) |
Our take
A quick, programmable standard servo for responsive control.
Hitec D625MW 32-Bit, High Speed, Metal Gear Servo at a glance
| Brand | Buddy RC |
|---|---|
| Price | $49.99 |
| Availability | In stock at buddyrc.com |
| Returns | Items can be returned within 30 days of receipt with an RMA code requested by email.… |
Price check
At $49.99, the Hitec D625MW 32-Bit, High Speed, Metal Gear Servo is toward the top of Buddy RC's price range, whose 4,618 listed products run $0.25 to $9,999.
Similar items from other brands we track run $15.40 to $119.99.
Frequently asked questions
What does it replace?
Hitec calls it the upgraded version of the HS-5665MH.
Can I run it on a 2S LiPo?
The listed range goes up to 7.4V, which covers a 2S LiPo without a regulator.
How much is the Hitec D625MW 32-Bit, High Speed, Metal Gear Servo?
Buddy RC lists it at $49.99 on buddyrc.com. We refresh prices throughout the day, but always confirm the final price at checkout.
What is Buddy RC's return policy?
Items can be returned within 30 days of receipt with an RMA code requested by email. Returns in new condition with original packaging have no restock fee; others are charged 10 to 20%, and shipping fees are not refunded.
How long does Buddy RC take to ship?
Orders placed before 2 p.m. EST usually ship the same business day from Columbus, Ohio, by USPS or UPS, with most packages arriving in 2 to 5 business days. Orders over $100 may ship free within the US, excluding most airplanes, and LiPo batteries ship only by UPS Ground.
Does the Hitec D625MW 32-Bit, High Speed, Metal Gear Servo come with a warranty?
Buddy RC's published warranty terms: Products older than 30 days may be exchanged under warranty but aren't eligible for a refund. Specific warranty terms aren't published in the policy text.
Where can I buy the Hitec D625MW 32-Bit, High Speed, Metal Gear Servo?
The Hitec D625MW 32-Bit, High Speed, Metal Gear Servo is sold directly by Buddy RC on buddyrc.com. The Shop now button on this page goes straight to the product there.
Is the Hitec D625MW 32-Bit, High Speed, Metal Gear Servo in stock?
Yes. Buddy RC lists it as in stock on buddyrc.com as of our latest check. Stock and prices refresh throughout the day.
Is Buddy RC a legit store?
Buddy RC is a strong pick for RC pilots who need specific parts, power systems or helicopter spares from a US warehouse with same-day dispatch. Skip it if you want generous returns, since shipping is never refunded and returns that aren't in new condition carry a 10 to 20% restock fee. Confirm the exact part number and motor or frame compatibility before ordering, because most of the catalog is model-specific. Our full Buddy RC review covers shipping, returns and what to check before ordering.
Is the Hitec D625MW 32-Bit, High Speed, Metal Gear Servo expensive?
At $49.99 it is toward the top of Buddy RC's range ($0.25 to $9,999 across 4,618 products), and similar items from other brands run $15.40 to $119.99.
